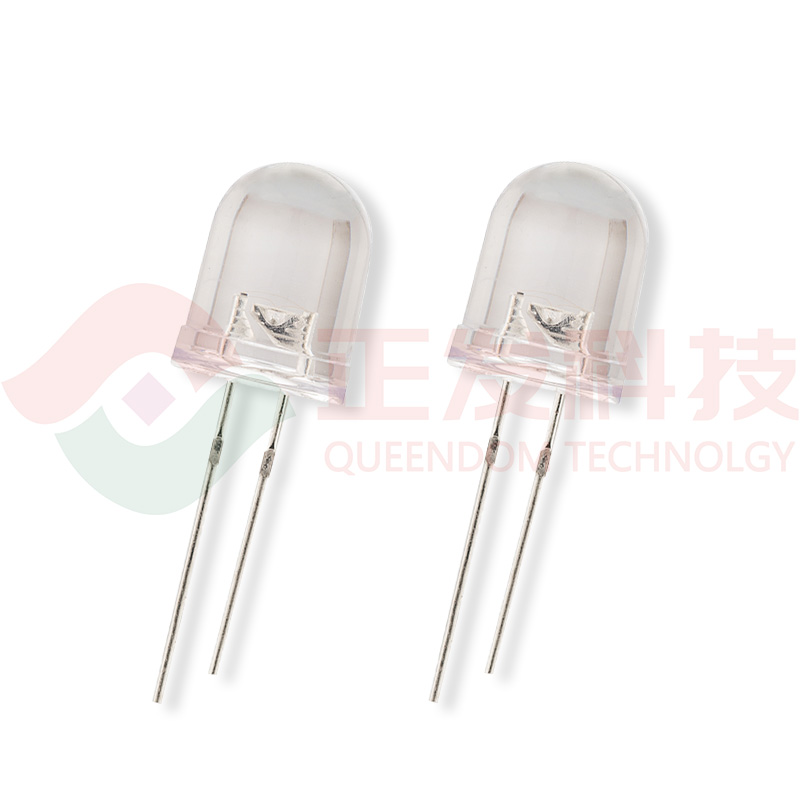

8mmUV紫光系列

产品简介

灯珠类型：8mm圆形紫色

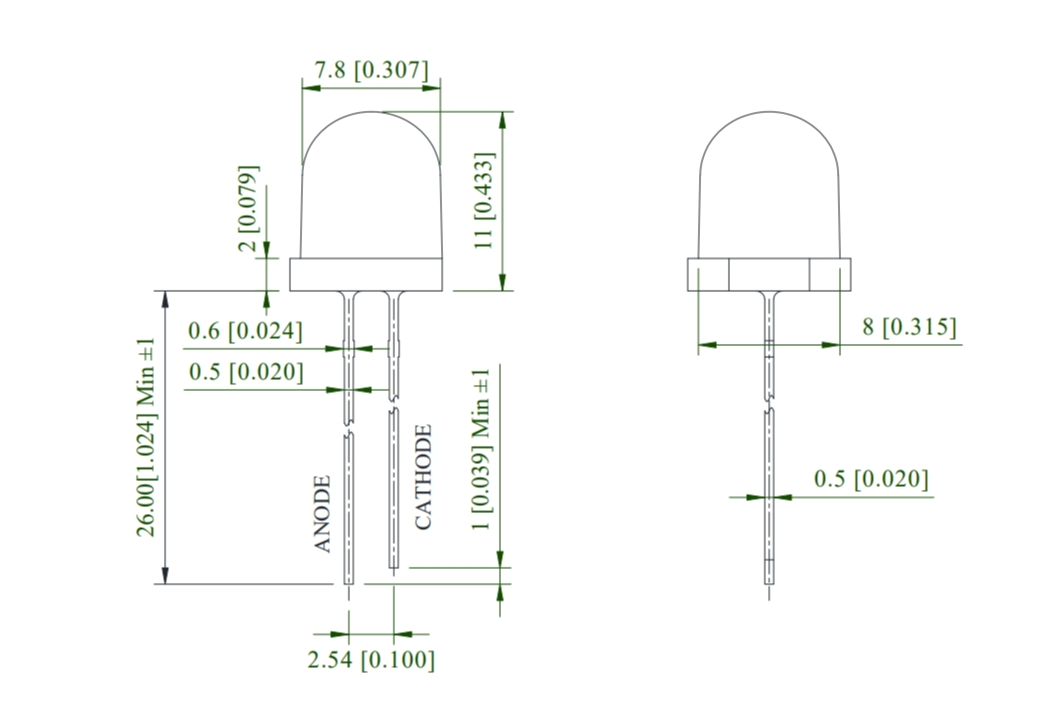

灯珠尺寸：8mm x11mm

额定功率：0.08W

工作电压：2.8-4.0V

峰值波长：360-410nm

工作电流：30mA

发射强度：60-300（mcd）

镜片外观：无色透明

封装支架：铁镀银

支架长度：18/16mm & 28/26mm

封装导线：高纯度99.99%金丝，金（Au）或铜（Cu）

芯片材质：Si、GaAs

芯片品牌：Samsung, Epistar, San'an, HC Semitek,

芯片规格：尺寸为8*8mi 9*9mil 10*10mil 12*12mil等;

发散角度：30°。

认证标准： ROHS、EN60471、RAECH。

工作温度：-40°C 至 +85°C

产品详情

规格PRODUCT

Table 1 Product performance of QUEENDOM uv led Colors at 20mA and 60mA , Tj=25ºC

Notes:

Luminous intensity is measured with a light sensor and filtercombination that approximates the CIE eye-response curve.2θ_1/2

is the o-axis angle where the luminous intensity is 1⁄2the peak intensity.c. The dominant wavelength (λd) is derived from

the CIE chromaticity diagram and represents the single wavelength which defines thecolor of the device.
